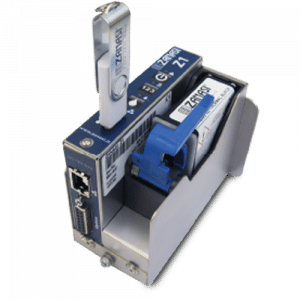

Z1 is the new Zanasi high resolution coding system, based on Thermal Inkjet (TIJ) technology – is the most suitable solution for a clear and clean industrial printing of barcodes, logos and alphanumerical texts on primary packaging and multiple packaging both on porous and non-porous surfaces (paper, aluminium, flexible film, plastic and coated cases, labels). The Z1 system grants very high definition printing (up to 900 dpi horizontal – 600 dpi vertical) of complex messages 12.5 mm high.

The Z1 system is easy to set-up, use and maintain. It is always ready to use, plug & play, manages a range of rapid dry and high adhesion inks through smart ink cartridges. The Z1 system can be managed and controlled remotely through the Z1 Remote Manager software, a powerful and intuitive software for easy message creation and remote control of the system and nearly an infinite number of printheads simultaneously.

TECHNICAL SPECIFICATIONS

PRINTING CHARACTERISTIC

• Print height from 1 to 12.5 mm (0.04” – 0.5”)
• Line speed capability: up to 90 mt/min* (295 ft/min)
• Available fonts: Windows True Type
• High quality graphic images printing
• Internal storage up to 9 messages
• Automatic date, time, off sets and expiry date multifunctions
• Incrementing/decreasing alphanumeric product counters up to 8 digits
• Repeat print – message function
• Field orientation: 0°, 90°, 180°, 270°
• Fixed and variable text fi eld types and barcodes (automatic or external)
• Coding throw distance up to 9 mm (0.35”)

BAR CODES (LINEAR AND 2D

• EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14, GS1 Databar, Datamatrix*, GS1 Datamatrix*, QR-Code*, GS1 Databar* (* Pro Version)

GENERAL FEATURES

• Intuitive message creation with Z1 Remote Manager software
• Data transfer using USB key
• Simplified images and texts formatting with Stretch and Drag & Drop function
• Print parameters stored within each message
• Multi printhead management through Z1 Remote Manager software
• Communication to managements programs and software
• Operator interface with extended foreign languages: English, Spanish, French, Italian, German and Japanese
• Auto real-time printing consumption calculation

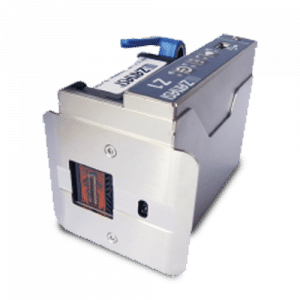

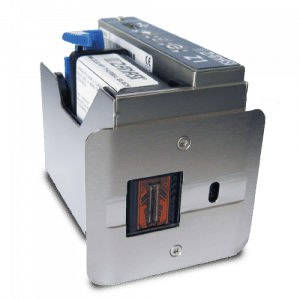

PRINTHEAD

• Stainless steel structure
• IP40 protection
• Thermal ink jet technology for industrial use
• Integrated sensor for product detection
• Horizontal resolution up to 900 Dpi
• Vertical resolution 600 Dpi
• Field orientation: sidewards (0° and 90°), downwards and upwards
• High contrast pigmented inks
• Rapid dry and high adhesion inks for non porous surfaces
• Dimensions printhead: 97 mm x 82 mm x 122 mm  (3.8” x 3.2” x 4.8”)
• Weight: 570 g (20 ounces)

EXTERNAL CONNECTIONS

• Scanner connection for printed barcode validation
• Ethernet interface for LAN connection 10/100/1000 Mbit
• External sensor management for product detection
• Parallel interface BCD
• Shaft encoder input for variable speed production lines
• External alarm output with traffic light column
• Z1 Remote Manager software for total remote PC management
• N°1 USB port version 2.0
• N°1 Serial port RS232

ENVIROMENT/ELECTRICAL REQUIREMENTS

• Temperature: from 5° to 40°C (40° – 104°F)
• Humidity: 10 – 90% (non-condensing)
• Single Phase, 100-240 Vac, 50-60 Hz, 12 VA
