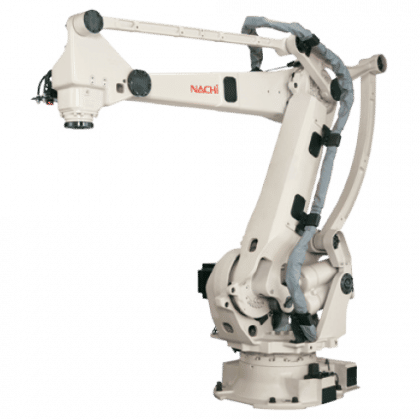

FAST PALLETIZING ROBOT LP130F | Robot Palletizer
HIGH SPEED HANDLING
1.800 packages per hour at maximum ( for 13kg loads )
*improvement of 20% compared with the conventional model
High performance based on the large capacity motor and the enhanced optimized motion control
*motion pattern : 400mm in vertical direction, 2,000mm in horizontal direction and 60 degree in swivel movement
FLEXIBLE PALLETIZING
Flexible layout of work-piece of various shapes/sizes due to the wide operation range
*pallet area size : 1,600mm squares and the hight is up to 2,212mm
Handling with suitable hand ( option ) for the work-piece is available
COMPACT LAYOUT
The large motion range and the space saving design reducing the interference amount realize the compact and flexible design of the equipments
EASY OPERATION
Easy setup due to an interactive interface
Easy programming by interactive program generator
