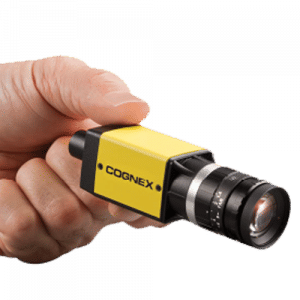

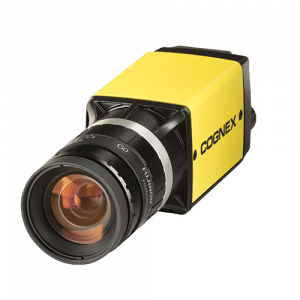

This family of ultra-compact, standalone vision systems deliver industry-leading vision tool performance at PC speeds, all in the form factor of a traditional GigE Vision camera. Measuring just 31mm x 31mm x64mm, all In-Sight 8000 series models feature power over Ethernet (POE), and provide the best standalone vision system option for integrating into small spaces.
As the world’s smallest, full line, stand alone vision system, the In-Sight 8000 series offers range of vision systems available in VGA, 1MP, 2MP and 5MP resolutions with color options available in VGA, 1MP, and 2MP resolutions. Supporting Gigabyte Ethernet for high speed communications, these vision systems offer very fast acquisition and two performance levels to meet a diverse array of machine vision demands.

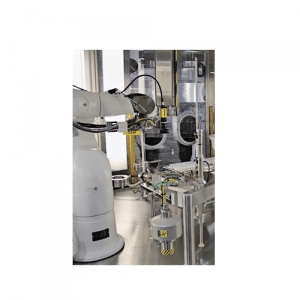

In-Sight 8000 compresses an entire self-contained vision system into an amazingly small package about the size of a traditional image-capture-only camera. All In-Sight 8000 models can be mounted at angles of up to 45-degrees using the In-Sight non-linear calibration tool. These vision systems are ideal for integrating into tight spaces on robots and hard-to-reach machinery anywhere on the production line.
The In-Sight 8000 models deliver high-performance vision tools, faster communication speeds, and high resolution in a small package that is ideal for integrating into small spaces where machine space is a premium.
RedLine was designed with one goal in mind: blazing fast pattern matching on all In-Sight 8000 series vision systems. In typical applications, PatMax RedLine runs 4 to 7 times faster than PatMax – or faster! – with no loss of search accuracy or robustness. Together with PatMax RedLine, the In-Sight 8000 series can reduce cycle times and increase throughput without compromising inspection accuracy.
Every In-Sight 8000 vision system model delivers best-in-class performance. Most models are equipped with a full library of proven Cognex vision tools through the easy to use In-Sight Explorer software. These include Pattern Matching (PatMax Redline, PatMax, and PatFind), Filtering (Grayscale and Color), Color tools (Color ID, True Color Extraction, Color Histogram), Inspect Defects (Surface Flaw, Flex Flaw, Inspect Edge), and ID (1D/2D, OCR).
Note: All In-Sight 8000 models have full vision tool suite with PatMax. Optional PatMax RedLine tool.
