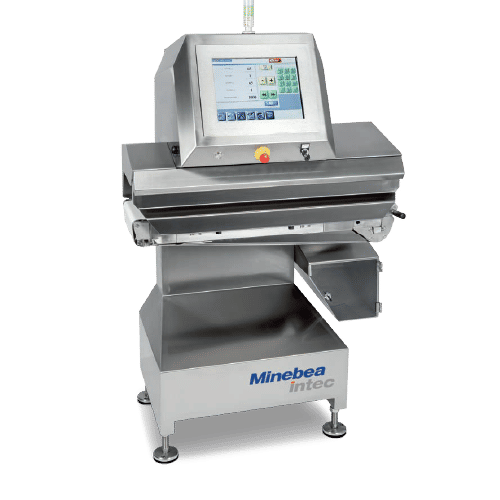

X-ray inspection system Dylight

The easy ‘Plug and Play’ solution

The X-ray inspection system Dylight guarantees xtremely high levels of safety for your packaged food. This true ‘Plug and Play’ solution combines all functions in one compact unit.

Product quality and safety for small packaged food

  • Dylight reliably detects metal, stone, plastic, bone and glass foreign objects and reliably excludes imperfect or contaminated products.
  • All the functions you require — including a blower for separation and a run-off container — are combined in one compact unit that takes up a width of just one metre exactly in your production line.
  • Increase operating time with Dylight: The intuitive user interface reduces operating errors to a minimum. New products can be configured quickly and conveniently.
  • The X-ray inspection system Dylight can be integrated into any network via SPC@Enterprise, OPC-UA, ModBus and Ethernet.

Extremely high levels of product safety in even the tightest of spaces

With the X-ray inspection system Dylight, Minebea Intec is offering a ‘Plug and Play’ product which is ideal for integration into existing production environments thanks to its reduced size. The system is perfectly suited for the inspection of small and light foodstuffs, such as snacks, energy bars, sweets and crisps. The system boasts a high level of efficiency. and saves valuable space on your production line thanks to its compact design.


Technical data – X-ray inspection system Dylight
X-ray power65 kV 1 mA
Detector resolution0.8 mm (standard) | 0.4 (optional)
Belt speed range10 to 49 m/min (with drum motor)
ApprovalsCE UL
Safety locksSIL 3 Category IV PL e, magnetic
User interface15-inch touchscreen
Operating temperature+5° to 35°C
Machine coolingAir cooling IP 54
Relative air humidity20% to 90%, no condensation
Digital outputs16 available
Digital inputs16 available
USB portYes
Network connectionEthernet
Compressed air5.5 to 6.9 bar
Radiation safetyFDA CFR 21 part 1020.40
International protection classIP 54 (complete system) | IP 65 (in detection area)
Electrical supply230 VAC ± 10% 50/60 Hz (standard) / 190 to 240 VAC 50/60 Hz (optional)
Conveyor height800 mm (+200 mm)
Conveyor width275 mm
Conveyor beltFDA approved
Safety curtainsLead-free
Languages availableGerman, English, Italian, French, Polish, Spanish, Hungarian (Chinese and Korean on request)
