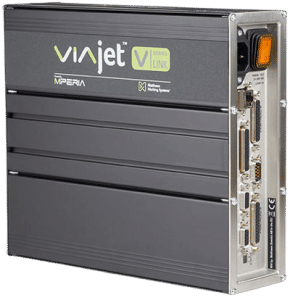

VIAjetTM  V-Series

DROP-ON-DEMAND VALVE JET PRINTERS POWERED BY MPERIA®
Unequaled Reliability, Speed, and Flexibility

INCREDIBLY CLEAR, CRISP MARKS ON YOUR POROUS AND NON-POROUS SUBSTRATES WITH THE FASTEST AND MOST RELIABLE PRINTHEADS IN THE INDUSTRY
MPERIA® VIAjet V-Series™ drop-on-demand valve jet printheads offer incredible print quality in flexible configurations and feature one of the fastest speeds in the industry. And because we feature the longest life printheads, your production lines continue to run at the highest efficiency.

OUTSTANDING RELIABILITY

  • Longest life printheads in the industry keep your line running
  • Flushing valve systems mean cleaning and maintenance are a breeze
  • Advanced printhead nozzle design allows you to install in harsh environments with confidence

UNMATCHED FLEXIBILITY

  • Install as your production line requires with over, under, and side firing capabilities
  • Print your mark at the required height and resolution with tilting printheads
  • Print your oversized marks easily by stacking printheads horizontally

TRUE SCALABILITY

  • Easily grow from one V-Series on your line to multiple V-Series printers on additional lines all driven by one controller
  • Seamlessly integrate print verification and validation without expensive middleware
  • Prevent integration headaches and complexity with a single interface controlling your V-Series and 3rd party coding technologies

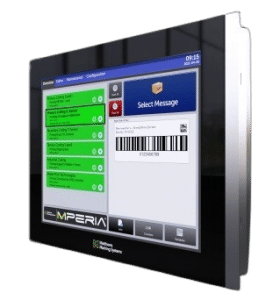

INTRODUCING MPERIA, A TRULY UNIVERSAL CONTROLLER

  • Eliminate human error and rework; message and code automation all handled through an intuitive interface
  • Grows with your business; whether adding more production lines or multiple plant locations
  • Reduce complexity by removing unneeded middleware and 3rd party providers
  • Achieve next level productivity; seamlessly connect to your business systems

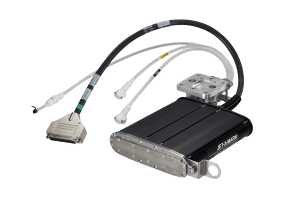

V-SERIES PRINTHEADS
8000+ Mini

  • Maximum Speed: 400 fpm(2)
  • Throw distance: 1/4” (6.357 mm)(3)
  • Minimum character size: 3/32” (2.38 mm)
  • Maximum character size: 1¼” (31.75 mm) – 5” (127 mm)

OUTSTANDING PRINT SPEED  up to 780 ft /min (Maxi), 400 ft /min (Midi, Mini)UNMATCHED FLEXIBILITY with 7, 16, or 32 valves per printhead and Mini, Midi, or Maxi nozzle sizes LONGEST LIFE PRINTHEADS with over 9 billion firings
8000+ Midi

  • Maximum Speed: 400 fpm(2)
  • Throw distance: 1/2” (12.7 mm)(3)
  • Throw distance: 1/2” (12.7 mm)(3)
  • Maximum character size: 1¼” (31.75 mm) – 5” (127 mm)
    8000+ Maxi
  • Maximum Speed: 780 fpm(1)
  • Throw distance: 1/2” (12.7 mm)(3)
  • Minimum character size: 1/4” (6.35 mm)
  • Maximum character size: 1¼” (31.75 mm) – 5” (127 mm)

OUR INKS

Our ink formulations, cleaners, and supply systems are designed to reliably deliver optimal performance. Advanced ink circulation technology reduces waste and cost-per-mark while bulk ink options enable you to run longer for less.
We offer a wide variety of pigmented, porous and non-porous inks, small and large capacity ink delivery systems, with fast startup, ink color changes, rugged construction and reliable performance.



PRINT CAPABILITIES

V-Series PrintheadMaximum SpeedPrinthead TypeMinimum Character SizeMaximum Character SizeMaximum Print Distance3
8000+ Maxi780 fpm(1)1/4″ (6.35 mm)7-Valve:1 1/4″ (31.75 mm)
8000+ Midi400 fpm(2)7-Valve 16-Valve 32-Valve3/16″ (4.76 mm)16-Valve:2 1/2″ (63.5 mm)1/2″ (12.7 mm)
8000+ Mini400 fpm(2)3/32″ (2.38 mm)32-Valve:5″ (127 mm)1/4″ (6.357 mm)


(1) At 1.8 mm spacing
(2) At 1.0 mm spacing
(3) At <200 fpm
