Metal Detector Secus®

  • Frequency range 5–50 kHz
  • Highly developed electronics to compensate for the product effect
  • 5.7-inch color touch screen display
  • Robust design
  • Easy integration into existing product lines
  • Protection class IP55, IP66 optional
  • Memory for 200 types of products
  • “Made in Germany” quality

For many years now, Minebea Intec has been active in the field of metal detection technology and is a reliable partner for companies operating in the fields of chemical engineering, rubber, timber, and coal processing, recycling, and mining.

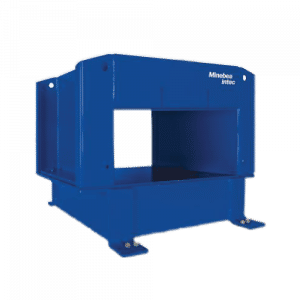

Secus®-D: The divisible coil which can be installed around your conveyor belts without separating them. It can also be removed without affecting the conveyor belt.


Secus® provides highly efficient and effective protection for your machines. It prevents metallic foreign bodies from entering your production process and therefore keeps downtimes for repairs to a minimum. Your employees are also reliably protected against injury from spalling metallic parts. High-quality materials and an in-house production process marked with the quality seal “Made in Germany” combine to achieve a product of unsurpassed quality. Specially designed for heavy industry, it is the robust design and detection sensitivity that particularly stand out, having been especially optimized for the extractive industry.


In order to ensure the highest levels of sensitivity and safety, Secus® provides a learning function for the monitored product. This allows the system to adapt to changing ambient conditions by compensating for the product effect.

Secus® enables up to four search coils to be operated via a single control unit (human interface) and allows for centralized management of your quality assurance process. This process can also be implemented by means of an electronic system that is separated from the search coil (max. 100 m). The task of monitoring the quality of the product flow is therefore made easy, even in cases where the coils are difficult for the operator to access. In addition, Secus® provides a range of data interfaces to ensure the easy integration of data into your production system.

Secus® offers an intuitive user interface with integrated user management. Various password-protected user authorizations can be assigned on request. The log function can be used to keep a record of every change to the settings and assign each change to a user. This function, which Minebea Intec includes in its standard design, guarantees you complete transparency of your production process at all times.

As an option, Secus® can be equipped with a reduced metal-free zone in order to rule out the possibility of interference in the direct vicinity of the search coil resulting from upstream or downstream production processes.

Metal Detector Secus D Specifications

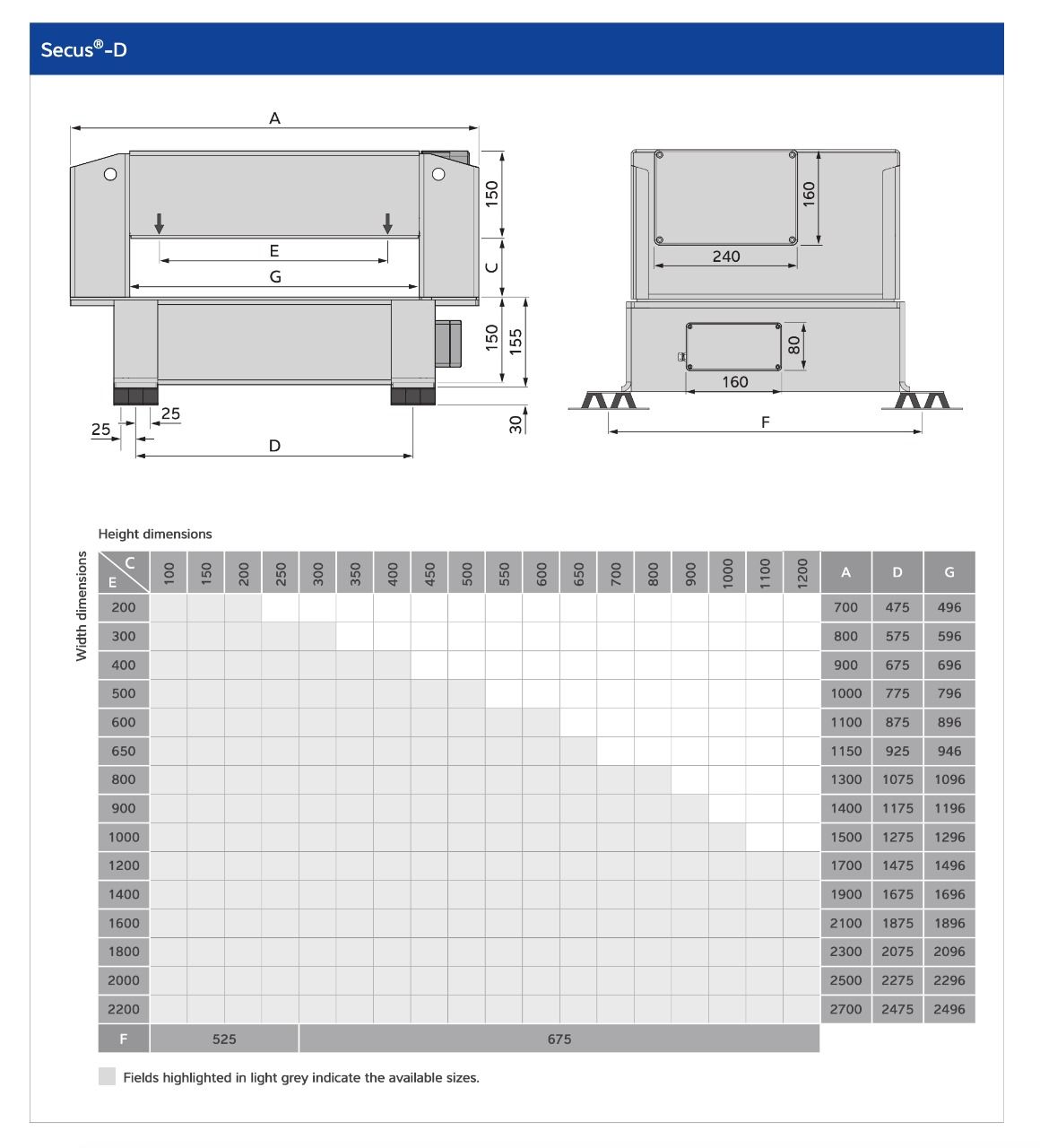

DimensionsSee technical drawings. Other sizes available on request.
Ambient temperatureOperating range: -10 to +55°C
Product temperature-30 to +55°C, up to +150°C if equipped with air cooling
HousingAISI 304 (1.3305) Steel (painted)
Data interfacesTCP | IP, RS-232, RS-422, CAN bus, fieldbus and profibus interface
Protection classIP55 (standard), IP66 optional
Power supply90V – 260V
Voltage frequency47Hz – 63Hz
Outputs3 freely programmable error outputs 1 fixed output 1 fixed output
Weight5 to 500 kg depending on design
Options• Log-in by means of fingerprint sensor
• Remote control
• End position monitoring
• Rejection monitoring
• USB print
• and much more
