Metal Detector

Vistus® metal detectors for optimum consumer protection Vistus® metal detectors are capable of detecting both ferrous and non-ferrous metals and are specifically designed for the food industry. They are available with a rectangular opening for use on conveyor belts and with a round opening for use on pipes. All Vistus® detectors feature:

  • Multi-frequency technology offering premium detection performance
  • Fast and easy switching between product batches via extensive product memory
  • Via the automatic learn-function, products can be set up or adjusted fast and errorfree by line operators without requiring special training or knowledge and without the involvement of an engineer
  • Access protection via user individual passwords or finger print authentication avoiding unauthorized system changes

A wide variety of available interfaces allows an easy integration into data networks

vSecus® – Metal Detection Technology
The Highest Level of Equipment Protection

– Frequency range 5–50 kHz
– Highly developed electronics to compensate for the product effect
– 5.7-inch color touch screen display
– Robust design
– Easy integration into existing product lines
– Protection class IP55, IP66 optional
– “Made in Germany” quality

Vistus® Metal detection

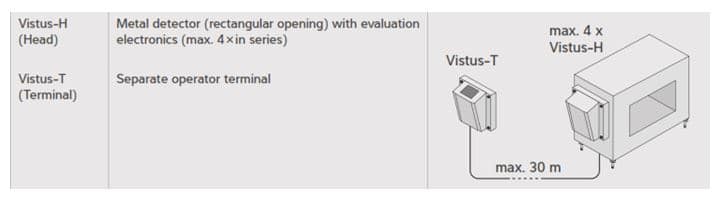

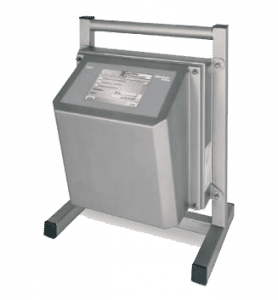

Vistus H

The Vistus® series from Minebea intecis the next generation of metaldetectors. With the Vistus®series, Minebea intec is setting newbenchmarks in terms of userfriendlinessand performance.The Vistus® series achieves thehighest level of detectionperformance and reliabilitythanks to the use of the highestquality components and a verywide frequency spectrum.

Technical specifications:
– Can be used in ambient temperatures of -10 to +55°C
– Relative humidity 0-99%
– Intuitive user interface with wizard support
– Automatic access via a fingerprint sensor
– Network operation by connecting to the SPC@Remote andSPC@Inline software programs
– TCP/IP, RS-232, RS-422, CAN bus, fieldbus and profibus interface
– Report output via USB print option
– Atex 22 conformity
– UL/CSA approval
– Etc.
