Zanasi Dod (Drop On Demand) Z101 Large Character

Z101 is our DOD entry level model. This system has been designed to meet both porous and non-porous printing requirements. It is perfectly suited for coding onto secondary packaging (boxes, cartons, packages) or plastic bags, buckets, tanks, etc.

Z101 features an innovative 5,7” touch screen panel with backlit LCD (320×240) display and a slant function for multiple character print height from 7 to 20 mm (0,28″ – 0,8″). Its unique design (integrated 7 dot solenoid printhead, integrated ink system eliminating the need for factory air, expandable printhead and compact design) has been  configured to be installed on taping machines or packaging lines with medium or low speed (up to 60 mt/min- 197 ft/min).

TECHNICAL SPECIFICATIONS

PRINTING CHARACTERISTIC

  • Single line coding with 7 dot printhead
  • Print height from 7 to 20 mm (0,28” – 0,79”)
  • Line speed capability: up to 60 mt/min (197 ft/min)
  • Printing rate: up to 150 ct/sec
  • 100 messages storage
  • 80 characters for each message
  • Available fonts: 5×5, 7×5
  • Bold factor: up to 5 times
  • Automatic calendar and expiration date print
  • Incrementing/decreasing products counter up to 9 digits
  • Repeat – message function
  • Printing in all moving directions
  • 180° text rotation
  • Coding throw distance up to 25 mm (0,98”)

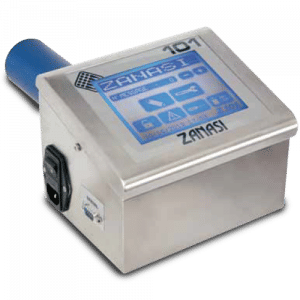

CONTROL UNIT CHARACTERISTIC

  • Internal pump for ink pressurization
  • 5,7” touch screen panel with backlit color LCD (640 x 480) display
  • Stainless steel structure AISI 304

 GENERAL FEATURES

  • Intuitive ease of use software interface
  • Print parameters storage in the messages
  • Report function for executed printing counter
  • Keypad access with password
  • Built-in multiple languages and alphabets
  • Single nozzle purge and printing functions selectable from touch screen panel
  • Inks for both porous and non porous surfaces

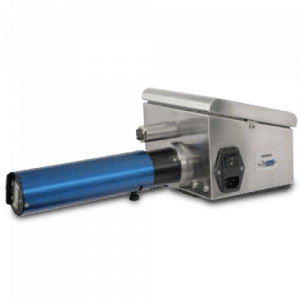

 PRINTHEAD

  • Serviceable and replaceable
  • High efficiency and accuracy solenoid technology
  • Slant function for multiple print seizes
  • Stainless steel structure AISI 304
  • Dimensions: length 196 mm, ø 50 mm (length 7,7″, ø 2″)
  • Console dimensions: 87 mm x 200 mm x 140 mm (3,4″ x 7,9″ x 5,5″)

EXTERNAL CONNECTIONS

  • Serial connection: RS232
  • Integrated optical sensor for product reading
  • External alarm outputs for low ink level

 ENVIROMENT/ELECTRICAL REQUIREMENTS

  • Temperature: 5° – 45°C (41°-113°F)
  • Humidity: 0 – 90% (non-condensing)
  • Single Phase, 85-240Vac, 50-60Hz, 30VA
