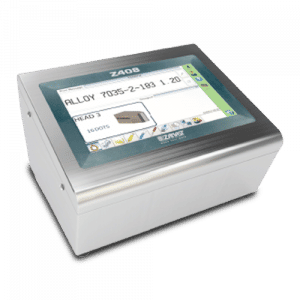

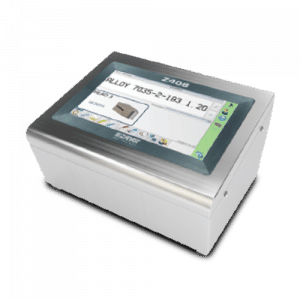

Zanasi Dod (Drop On Demand) Z408 Large Character

Z408 system is able to drive all NZ printheads, even mixed, up to a maximum of 4, thus revealing its flexibility and proving ideal for applications with multiple production lines, or where it is required to print a number of lines on the different sides of the package, with a printing range from 5 up to 190 mm.

Z408 can print barcodes, logos and alphanumerical texts on the surface of whatever raw material and secondary packaging, ensuring efficiency and reliability in a myriad of sectors and applications such as Metallurgic, Pipes/ Tubes, Construction, Boards, Petrol Chemical, Gas Tank, Tiles Sector, Cemen Bags, Bags in General, Food, Pet food, and Tires.

The solid and compact stainless steel cabinet is equipped with an enhanced IP protection, which makes the system particularly resistant to dust, high temperatures and water jets, and therefore suitable for being used in the harshest work environments. Interacting with Z408 is easy thanks to Orkestra®, the revolutionary management software with customizable user interface for single operator through language, keyboards and activities. The 10,1″ color touch-screen display further simplifies the coding experience, as well as the use of the graphic editor and of the stretch and drag&drop functions.

TECHNICAL SPECIFICATIONS

PRINTING CHARACTERISTIC

  • Management of up to four 7 or 16 dot, or two 32 dot, or one 48 dot printheads
  • Up to 10 printing lines
  • Print height from 5 to 190 mm (0,20” – 7,48”)
  • Line speed capability: up to 180 mt/min (591 ft/min)
  • Printing rate: up to 266 ct/sec
  • Up to 6800 stroke per message
  • Messages and logos storage: up to 4GB with expandable micro SD memory
  • Fixed and variable text fields types (automatic or external)
  • Available fonts: 5×4, 5×5, 6×4, 7×4, 7×5, 9×5, 9×7, 10×8, 12×10, 16×10, 24×16, 32×18 and TrueType
  • Logos, shapes and lines easy and quick creation through touch-screen display
  • Automatic date, time, offsets and expiry date multifunction
  • Incrementing/decreasing alphanumeric products counter up to 9 digits
  • Metric repeat print–message function
  • Customizable message repeat with single print start
  • Field orientation: 0°, 90°, 180°, 270°
  • Tower print function (Text rotation of 90°)
  • Coding throw distance up to 35 mm (1,37”)

BAR CODES

  • 2/5 Industrial, UPC-A, CODE 39, EAN 13

CONTROL UNIT CHARACTERISTIC

  • 10,1” TFT full color anti-reflection high contrast LED touch-screen
  • Stainless steel structure AISI 304
  • Printhead-console distance: up to 10 mt (33 ft)
  • Support on rubber feet

GENERAL FEATURES

  • Exclusive customizable user interface for single operator (functionality, language and alphabets)
  • Intuitive user interface with graphic icons
  • Innovative graphic editor with stretch and drag & drop
  • User interface and virtual keyboard with foreign languages and alphabets
  • Purge and calibration per single dot
  • Message storage with file name
  • Print parameters storage in the messages
  • Message dimension check before print
  • Multi-level access with login
  • Real time throughput counter
  • Online help and user manual with contextual photos and videos

PRINTHEAD

  • High efficiency Solenoid technology
  • Stainless steel structure AISI 304
  • Fast dry and high adhesion inks
  • Stainless nozzle plate AISI 304
  • High precision nozzles made of synthetic ruby
  • Dimensions 7 dot printhead: 230 mm x 80 mm x 45 mm (9,0” x 3,15” x 1,80”)
  • Dimensions 16 dot printhead: 230 mm x 80 mm x 85 mm (9,0” x 3,15” x 3,35”)
  • Dimensions 32 dot printhead: 230 mm x 80 mm x 154 mm (9,0″ x 3,15″ x 6,06″)
  • Dimensions 32 dot misaligned printhead: 230 mm x 80 mm x 139 mm (9,0″ x 3,15″ x 5,47″)
  • Dimensions 48 dot printhead: 230 mm x 80 mm x 213 mm (9,0″ x 3,15″ x 8,38″)

EXTERNAL CONNECTIONS

  • Serial connection RS232
  • Ethernet interface for LAN 10/100 connection
  • USB port version 2.0
  • Sensor management for product reading
  • System ready output
  • Shaft Encoder input for variable speed production lines
  • External alarm outputs with traffic light column
  • Parallel interface BCD, 6 bit
  • Configurable I/O ports

ENVIROMENT/ELECTRICAL REQUIREMENTS

  • Temperature: 0° – 50°C (32° – 122°F)
  • Humidity: 0 – 90% (non-condensing)
  • Single phase, 85 – 240 Vac, 50 – 60 Hz, 400VA
  • Single phase, 85-240Vac, 50-60Hz, 800VA (more than 32 dots)
